Thông tin chi tiết sản phẩm
Nguồn gốc: Changsha, Hunan, Trung Quốc
Hàng hiệu: Elacera
Chứng nhận: ISO9001-2015
Số mô hình: Ống cao su lót gốm
Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu: Có thể thương lượng
Giá bán: Có thể đàm phán
chi tiết đóng gói: Đóng gói trong vỏ bằng gỗ hoặc giá đỡ sắt
Thời gian giao hàng: 25-45 WorkDas
Điều khoản thanh toán: T/T
Khả năng cung cấp: 100.000 ㎡/ năm
Kháng hóa chất: |
Tốt |
Chống mài mòn: |
Xuất sắc |
Nội dung của alumina: |
≥95% |
Tính linh hoạt: |
Cao |
Kiểu kết nối: |
mặt bích hoặc chủ đề |
Mật độ gạch gốm: |
3,75g/cm3 |
Đường kính: |
25mm đến 300mm |
Sức mạnh uốn: |
≥290MPa |
Cân nặng: |
Thay đổi theo kích thước |
độ cứng: |
HRA 85 - 90 |
Tạo áp lực: |
Lên đến 10 bar |
Chiều dài: |
Có thể tùy chỉnh |
phụ kiện cuối cùng: |
Mặt bích, ren hoặc ghép nối |
Áp suất làm việc: |
1.0MPa - 2.5MPa |
Chịu mài mòn: |
Xuất sắc |
Kháng hóa chất: |
Tốt |
Chống mài mòn: |
Xuất sắc |
Nội dung của alumina: |
≥95% |
Tính linh hoạt: |
Cao |
Kiểu kết nối: |
mặt bích hoặc chủ đề |
Mật độ gạch gốm: |
3,75g/cm3 |
Đường kính: |
25mm đến 300mm |
Sức mạnh uốn: |
≥290MPa |
Cân nặng: |
Thay đổi theo kích thước |
độ cứng: |
HRA 85 - 90 |
Tạo áp lực: |
Lên đến 10 bar |
Chiều dài: |
Có thể tùy chỉnh |
phụ kiện cuối cùng: |
Mặt bích, ren hoặc ghép nối |
Áp suất làm việc: |
1.0MPa - 2.5MPa |
Chịu mài mòn: |
Xuất sắc |
Product introduction

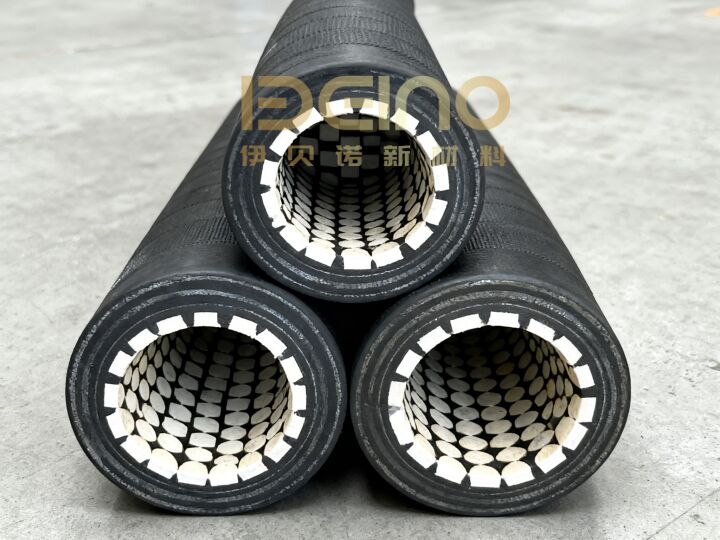

Abrasion-resistant ceramic hose is a specialized pipeline solution developed for ash handling systems in thermal power plants. In such environments, pipelines are continuously exposed to highly abrasive materials such as fly ash, bottom ash, and coal powder, which can rapidly wear down conventional steel pipes or rubber hoses.
This type of industrial wear-resistant hose features a multi-layer composite structure that combines high-purity alumina ceramic lining with reinforced rubber materials. The ceramic layer acts as the primary wear-resistant barrier, while the outer rubber structure provides flexibility, sealing performance, and impact resistance.
Compared with rigid steel pipelines, this ceramic rubber composite hose offers both durability and flexibility, making it particularly suitable for complex pipeline layouts, vibration-prone systems, and areas requiring frequent maintenance. The manufacturing process of this ceramic rubber composite hose ensures strong bonding, high wear resistance, and long service life under harsh industrial conditions.
Product Features
♠High wear-resistant ceramic inner layer
♠Strong flexibility for complex pipeline layouts
♠Reinforced rubber outer layer (NBR)
♠Suitable for high-temperature ash conveying
Application Areas
♠This abrasion-resistant ceramic hose is widely used in:
♠Fly ash conveying systems
♠Bottom ash transport pipelines
♠Coal powder conveying systems
♠Pneumatic conveying lines
♠Thermal power plant material handling systems
Manufacturing Process
| NO | Process Name | Description | Key Control Points |
| 1 | Ceramic Preparation | High-purity alumina ceramic tiles are produced and precisely cut to the required dimensions. | Alumina content ≥95%, dimensional accuracy |
| 2 | Surface Treatment | The inner surface is cleaned and treated to improve bonding strength. | Surface roughness & cleanliness |
| 3 | Ceramic Lining Installation | Ceramic tiles are bonded inside the hose using high-strength adhesive. | Uniform distribution, no gaps |
| 4 | Rubber Layering | Nitrile rubber (NBR) is applied as the outer layer for flexibility and sealing. | Rubber thickness consistency |
| 5 | Molding & Forming | The composite structure is shaped under controlled pressure. | Structural integrity |
| 6 | High-temperature Vulcanization | The hose is vulcanized to ensure strong bonding between ceramic and rubber. | Temperature & time control |
| 7 | Cooling & Finishing | The hose is cooled and trimmed to final dimensions. | Dimensional accuracy |
| 8 | Quality Inspection | Each hose undergoes pressure, wear, and bonding strength tests. | 100% inspection standard |
Product Advantages
Extended service life: The ceramic lining significantly reduces wear caused by ash particles, extending service life several times compared to conventional pipelines.
Reduced maintenance frequency: Lower wear rates mean fewer shutdowns for inspection and replacement, improving plant operational efficiency.
Improved system reliability: The flexible hose structure reduces stress concentration and minimizes the risk of pipeline cracking or failure.
Energy efficiency improvement: Smooth inner ceramic surface reduces flow resistance, helping maintain stable conveying efficiency.
Lower total cost of ownership: Although initial investment may be higher, long-term savings in maintenance and replacement costs are substantial.
Production Equipment
♠Automatic ceramic cutting machines
♠Rubber mixing and extrusion equipment
♠Vulcanization tanks
♠Pressure testing systems
FAQ
Q1: Is this hose suitable for pneumatic ash conveying?
A: Yes, it is suitable for both pneumatic and slurry conveying systems.
Q2: Can it replace steel pipelines?
A: Yes, especially in high-wear areas where flexibility is required.
Q3: What is the service life?
A: Typically several times longer than conventional rubber hoses, depending on working conditions.
Q4: Can specifications be customized?
A: Yes, diameter, length, and pressure rating can be customized.
